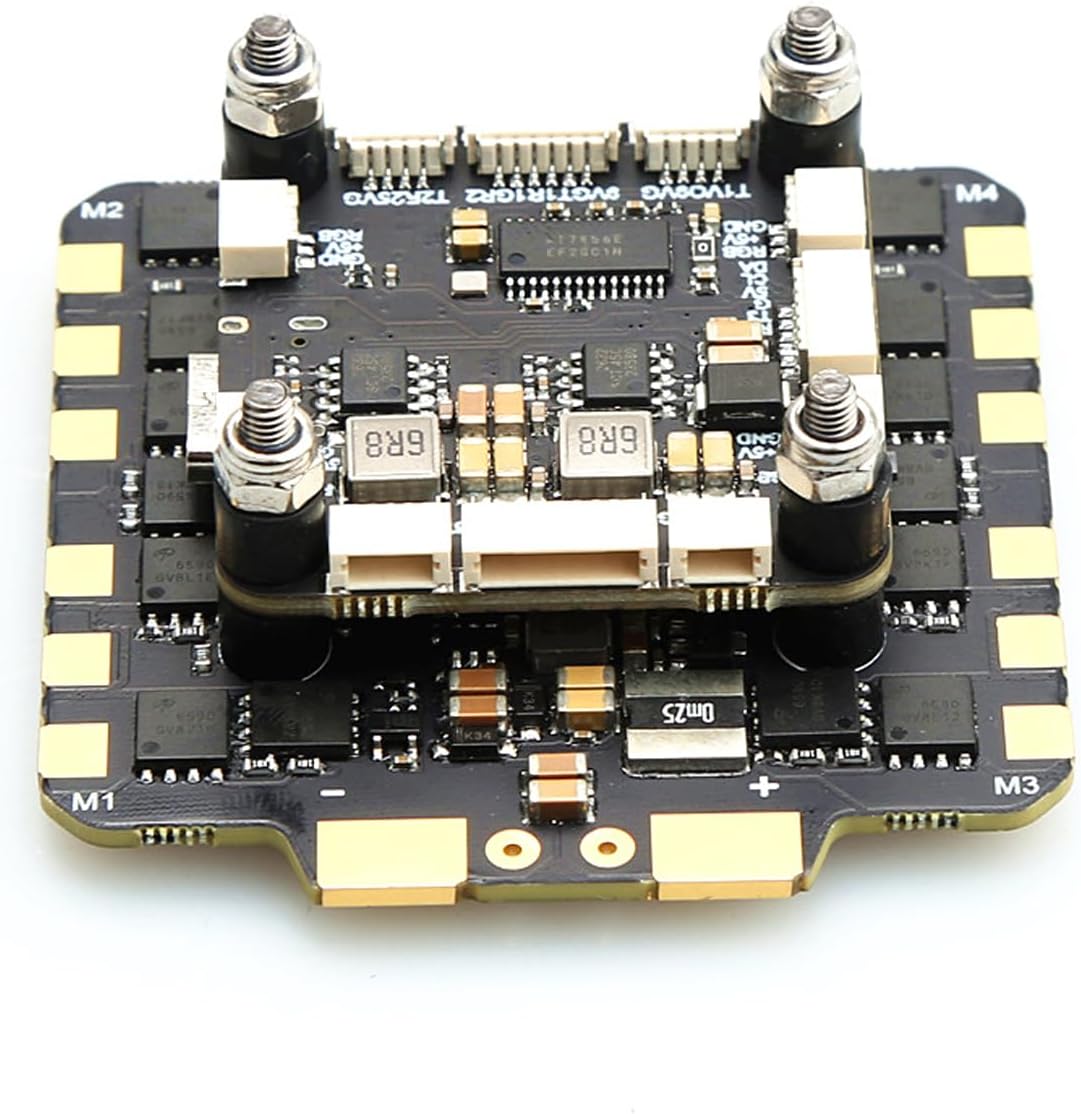

Alomejor Mini F722 Controller with 80A 4in1 BLheliS ESC, Ideal for FPV Racing Quadcopter, HighEnd Composite Material (Black #-3)
4.3 (21 items)
Limited Time SaleUS$70.91 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216413526 | Release Date | 2026/04/19 | List Price | US$47.28 | Model Number | 216413526 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1. [HIGH-PERFORMANCE 80A ESC] Features a 4-in-1 ESC with high performance MOSFETs and 3-6S LiPo power input. 2. [BUILT TO LAST] Continuous current of 80A per ESC and burst current of 90A for optimal performance. 3. [COMPACT DESIGN] Mounting of 30.5x30.5mm and a dimension of 57(L) * 56(W) for easy installation. 4. [ESC PROTOCOL SUPPORT] Compatible with DSHOT300/600 for efficient communication and control. 5. [EASY INSTALLATION] Includes M3*22 screws and M3 nuts for a hassle- setup process. Specification: Item Type: F722 Controller MCU: STM32F722RET6 IMU: -42688 OSD: Baro: SPL06-001 : 16MB Input voltage: 3-8S Lipo(11.4-36V) 5V-BEC: 5V/2.5A ±0.1V 10V-BEC: 10V/2A(USER1) IO2: USER2 : ELRS(CRSF), (CRSF), SBUS.IBUS.DSM2. UART: UART1/2/3/4/5/6 IIC: 12C1 Led Strip: YES Buzzer: 5V ESC signal: Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600 USB: TYPE-C Current port: YES Voltage sensor: YES DFU (DFU ): YES Firmware: Betaflight 4.3.1 JHEF7DUAL.HEX Size: 36*36MM Mounting Hole: 30.5*30.5*4MM Item Type: 80A 30.5x30.5 4-in-1 ESC MCU: EFM8BB21F16G MOSFET: High performance MOSFET Power Input: 3-6S LiPo Continuous Current: 80 * 4 Burst Current: 90A(10seconds) ESC Telemetry: NO Current Sensor Scale: 200 ESC Protocol: DSHOT300/600 Firmware: Q_H_40_24_v0.19.2 Mounting: 30.5 x 30.5mm( 4mm hole diameter) Dimension: 57(L) * 56(W) packing list: 1 * F722 Controller Kit 1 * 4-in-1 ESC Kit 4 * M3*22 Screws 4 * M3 Nuts
- [HIGH-PERFORMANCE 80A ESC] Features a 4-in-1 ESC with high performance MOSFETs and 3-6S LiPo power input.
- [BUILT TO LAST] Continuous current of 80A per ESC and burst current of 90A for optimal performance.
- [COMPACT DESIGN] Mounting of 30.5x30.5mm and a dimension of 57(L) * 56(W) for easy installation.
- [ESC PROTOCOL SUPPORT] Compatible with DSHOT300/600 for efficient communication and control.
- [EASY INSTALLATION] Includes M3*22 screws and M3 nuts for a hassle- setup process.
| Item Weight | 1.92 ounces |
|---|---|
| Manufacturer | Alomejor |
| Product Dimensions | 1.96 x 1.57 x 0.39 inches |
| Manufacturer recommended age | 16 years and up |
