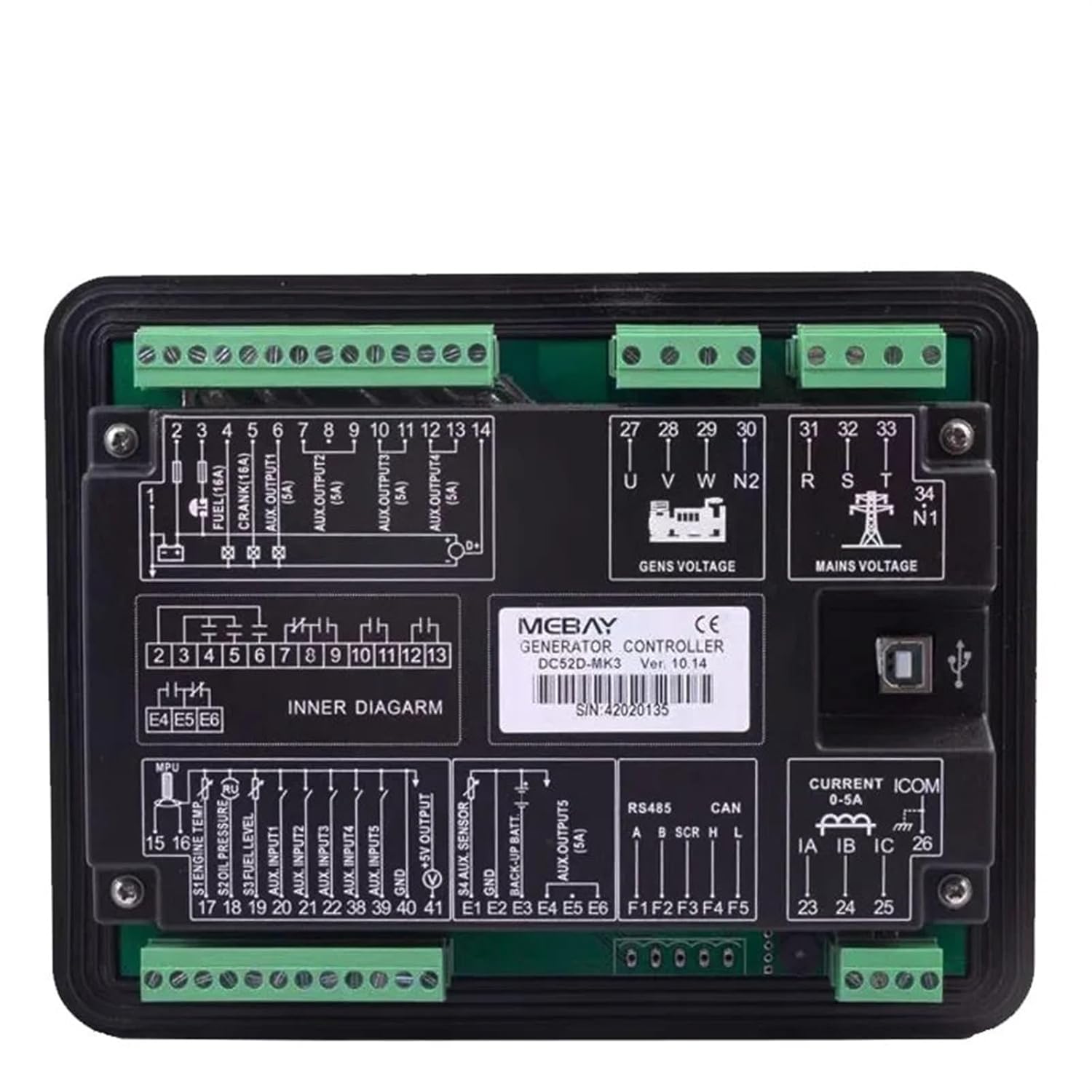

DC50D DC52D MK3 Diesel Generator Set Controller Generator Set Control Panel(DC52D)

Electronic Engine ControlThe DC52D MKII is designed for starting, stopping, parameter monitoring, fault checking, and data setting of diesel/gasoline/gas generator sets.A 3.5-inch high-resolution display screen with a UI design that can directly display related faults. All parameters can be displayed using simulation metrics and text. In addition, the screen can simultaneously display various faults, and once the generator set cannot operate smoothly, it will stop running.There are Chinese/English interface options, and more languages can be set according to user requirements. All parameters can be configured through the front buttons, and can also be adjusted using RS485 or USB programmable interfaces. PC-It can be widely used in various automatic control systems of generator sets.Module DC52DMKII Working voltage: DC8V-36V Continuous power consumption standby: 24V: Maximum 1W Working voltage: 24V: 5W MaxRated frequency: 40.0-80.0Hz (50.0Hz) Rated voltage: 80-360V (230V) Rated current: 5-6000A (500A) Rated power: 5-2000Kw (276Kw) Rated battery voltage: 8.0-36.0V (24.0V) Rated speed: 500-4500RPM (1500)Protection level: IP54Packaging size: 150 * 150 * 100mmPackaging weight: 1000gMaterial: ABS and metalColor: Black
